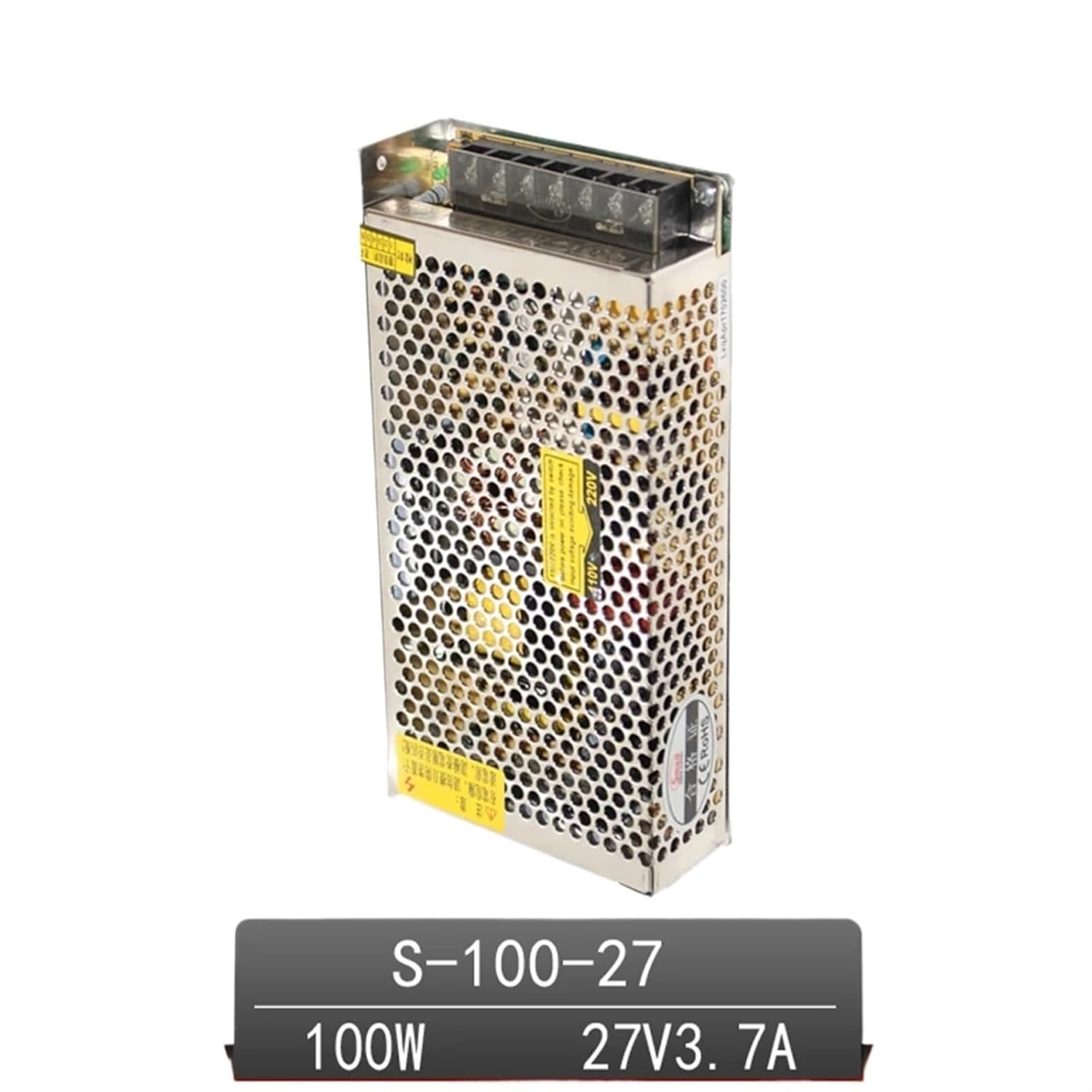

100W 220VAC to 3.7A 27VDC Switched Mode Power Supply SMPS 1Pcs
4.8 (144 items)
Limited Time SaleUS$25.50 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211046712 | Release Date | 2026/04/04 | List Price | US$17.00 | Model Number | 211046712 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Power TransformersModel S-100-5 S-100-12 S-100-15 S-100-24 S-100-27 Output DC output Voltage 5V 12V 15V 24V 27V Voltage tolerance ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% Rated Current 20A 8.5A 6.7A 4.5A 3.7A Related Power 100w 100w 100w 100w 100w Wave&Noise 100mVpp 100mVpp 100mVpp 100mVpp 100mVpp Adjustable range for DC Voltage ±10% ±10% ±10% ±10% ±10% Set up,rise,hold up time 200ms 100ms 20ms Input Voltage Range 85~132VAC 170-264VAC selected by switch 47-63HZ 240-370VDC Input Current 1.6A/115VAC 0.8A/230VAC Efficiency 81% 81% 84% 84%% 84% AC inrush current Cold start current 15A/115V 30A /230VAC <;0.5mA/240VAC Protection Overload Related output power 105-150% start overload protection Protection type: cutoff output, recovery after restart power Over voltage 5.75V-6.75V 13.8V-16.2V 17.2V-20.2V 27.6V-32.4V 29V-35V Hiccup mode,recovers automatically after fault condition Environment Working temp humidity -10~+60°C 20%~90%RH Stor temp, humidity -20~+85°C 20%~90%RH Non-condensing Safety Withstand voltage I/P-O/P:1.5KVAC 1min I/P-FG:1.5KVAC 1min O/P-FG:0.5KVAC 1min
- Power Transformers
| Model | DMBGRXJF |
|---|---|
| Brand Name | DMBGRXJF |
| Unit Count | 1.0 Count |
| Item Weight | 50 Grams |
| Part Number | DMBGRXJF |
| Manufacturer | DMBGRXJF |
