APPLIED MEMBRANES, INC. 4x40 RO Membrane Housing | PVC RO Pressure Vessel for 4" x 40" RO, UF, NF, MF Membrane Element | Commercial Water Treatment | 200 PSI | U-Pin Style | PV4040PWG
4.4 (16 items)
Limited Time SaleUS$239.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210205711 | Release Date | 2026/04/02 | List Price | US$159.60 | Model Number | 210205711 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

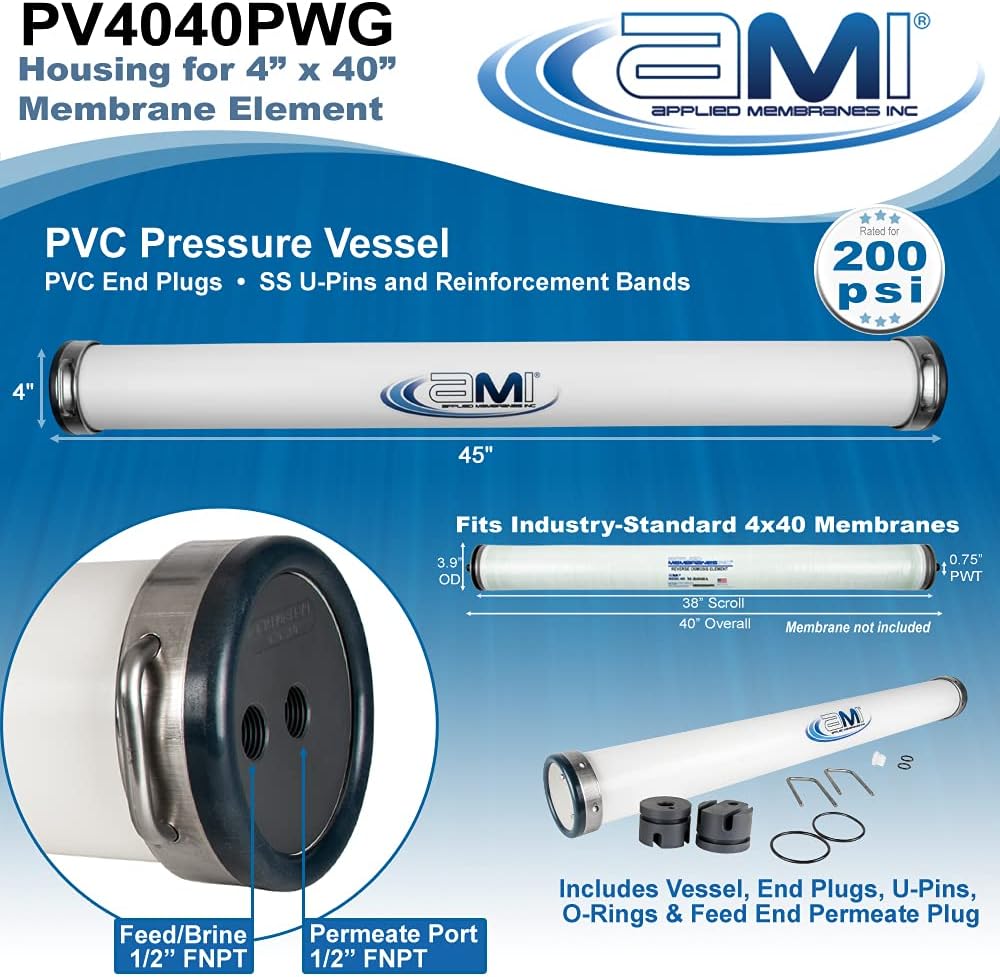

Applied Membranes PVC Membrane Housing to fit 4” x 40” Standard Membrane Element. Replacement Pressure Vessel for Commercial RO System and NF, UF, MF Membrane Water Treatment System AMI PVC pressure vessels for housing 4040 membrane elements are ideal for lower pressure membrane water filtration applications up to 200 psi. Designed for direct connection to industry-standard 4x40 membrane elements with 3/4" male product water tubes (stinger style). The U-Pin style end closures are designed for ease of installing and replacing membrane elements, with standard ½" FNPT threaded connections: no special fittings required. Each membrane housing is individually inspected for quality assurance. Each membrane housing is sold complete with End Plugs, U-Pins, Feed Plug, and O-Rings. Mounting pads and straps are sold separately. 4x40 Pressure Vessel Specifications - Applied Membranes Part #: PV4040PWG- For Membrane Size: 4x40 (3.9” Dia. x 40”L with 3/4” male PWT) - Operating Pressure: 200 PSI (14 Bar) Maximum- Vessel Dimensions: 4" Dia. x 45" Length (10.2 cm Dia. x 114.3 cm Length) - In/Out Connections: 1/2" FNPT Feed, Brine, and Product - Configuration:End Entry- End Closures:U-Pin- Materials:PVC Body, PVC End Plugs, SS U-Pins & Reinforcement Cuff Bands
- <b>200 PSI Maximum Operating Pressure:</b> Ideal for LE & XLE Low Energy RO Membranes.
- <b>Versatile:</b> Exceptional Performance in Commercial Reverse Osmosis RO Systems, Nanofiltration NF Systems, Microfiltration MF, and Ultrafiltration UF Membrane Water Treatment Applications.
- <b>Standard Size:</b> Fits Industry-Standard 4” x40” Membrane Elements including Applied Membranes, FilmTec, Hydranautics, and any standard 4x40 membrane with 3/4" male PWT.
- <b>Strong & Reliable:</b> NSF Approved Rigid PVC Body, PVC End Plugs, Stainless Steel U-Pins and Reinforcement Cuff Bands.
- <b>Complete Assembly:</b> Each vessel is supplied with the PVC pressure vessel shell, two end plugs, u-pings, O-rings, and feed-end permeate port plug.
| Brand Name | APPLIED MEMBRANES INC. |
|---|---|
| Unit Count | 1.0 Count |
| Item Weight | 20 Pounds |
| Manufacturer | APPLIED MEMBRANES INC. |
| Model Number | PV4040PWG |
| Material Type | Membrane Housing U- Pin 200 PSI |
| Number of Items | 1 |
| Product Benefits | Fits Industry-Standard 4x40 Membrane Elements. Compatible with RO, UF, NF, and MF Water Filtration Systems. |
| Included Components | Vessel Shell, End Plugs, U-Pins, O-Rings, Feed End Permeate Port Plug |
| Manufacturer Part Number | PV4040PWG |
| External Testing Certification | NSF |
