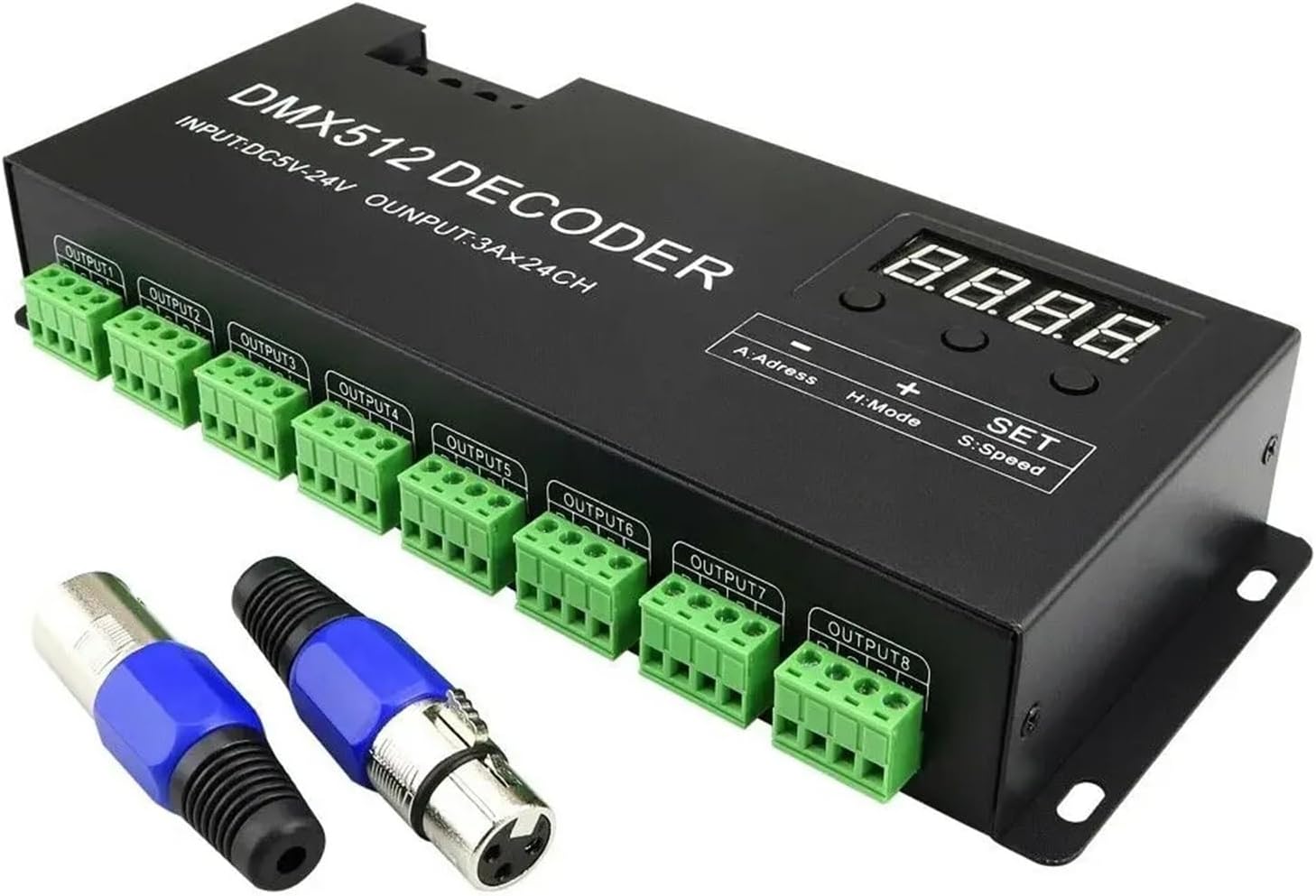

DMX512 RGB RGBW LED Controller 3/4/6/12/ 24CH 30CH 30 Channel 2A 3A 5A decoder dimmer Driver for 5050 RGB RGBWW LED Strip(4ch Rgbw Iron Shell)

ControllersIndustrial Power Supply3/4/6/12/30CH-DMX512 RGB RGBW LED controller dmx decoder dimmer driverdescribewelcome3 channel mini:Product performance:Input power supply: DC12V-DC24V Maximum load current: 4A/3CHMaximum power load: 144W (12V) 288W (24V) Output grayscale: 256Input signal: DMX512/1990 Output signal: 3-channel constant PWMOutput DMX: 3-way DMX512 socket standard RJ45;Size: 94MM*47MM*24MM Net weight: 64gGross weight: 80gPackage Included:1x RGB 3CH DMX 512 constant decoder1 user manual4 channel mini:Product performance:Input power supply: DC12V-DC24V Maximum load current: 4A/4CHMaximum power load: 144W (12V) 288W (24V) Output grayscale: 256Input signal: DMX512/1990 Output signal: 4-channel constant PWMOutput DMX: 4-way DMX512 socket standard RJ45;Size: 94MM*47MM*24MM Net weight: 64gGross weight: 80gPackage Included:1x RGBW 4CH DMX 512 constant decoder1 user manual3 channels (iron case):illustrate:DMX universal controller adopts advanced micro control unit and accepts standard DMX-512 digital controlsignal and convert it into a PWM signal to drive the LED;You can connect the DMX module with the DMX digital console to achieve dimming or various program changes.Specification:1. Working temperature: -20℃-60℃2. Input voltage: 12V~24V3. Output: 3 channels (R/G/B/+); 4 channels (R/G/B/W/+)4. Output current: 8A (per channel); RGB: 24A; RGBW: 32A5. Connection method common anode6. Overall dimensions: L164*W65*H40 mm7. Packing size: L183*W82*H60 mm8. Net weight: 360g9. Gross weight: 410g10. Output grayscale RGB 256 levels eachPackage Included:1x RGB 3CH DMX 512 constant decoder1 user manual4 channels (iron shell):Specification:1. Working temperature: -20℃-60℃2. Input voltage: 12V~24V3. Output: 4 channels (R/G/B/W/+)4. Output cu
