Henkion RSO-4000D Fiber Optic OTDR Tester SM 1310/1550nm 26/24dB 100km with 4.3inch IPS Touch Screen MonitorTester with VFL OPM OLS Event Map RJ45 Tracking Functions
4.9 (86 items)
Limited Time SaleUntil the end
23
23
10
US$54.00 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used US$36.00
Product details
| Management number | 211721302 | Release Date | 2026/04/04 | List Price | US$36.00 | Model Number | 211721302 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Intelligent OTDR measurement】OTDR fiber optical tester provides wavelength of 1310/1550nm and dynamic range of 26/24dB,the max test distance 150km.For auto test mode: can one click start test,only select the wavelength and test time,quickly perform the test.For expert OTDR :Testing after setting parameters distance scope,pulse width,duration of measurement etc.The test results will be more accurate. Pls note:This mode only can detect optical signal,doesn't support live test.
- 【Curve Analysis & Shortest EDZ ADZ】Mini OTDR optical fiber tester support dual wavelength testing and can measure macro bends.The OTDR fiber tester can analyzes the curve automatially,touch screen zoom or move curves operation.The tested results are displayed in the form of a list.Event list clearly reflects the type of event,distance,loss,decay,reflection. Shortest event dead zone (2.5m) and attenuation dead zone (8m).
- 【 OPM VFL LS OLS Tools &Analysis Software】Optical power meter--It is used for optical power testing and fiber link loss relative measurement. OPM Supports CW/270/330/1kHz/2kHz frequency identification. LS--Wavelength: 1310/1550nm, 1kHz/2kHz. VFL and OLS can run in the background. LS supports CW/ modulation mode output with adjustable output power.

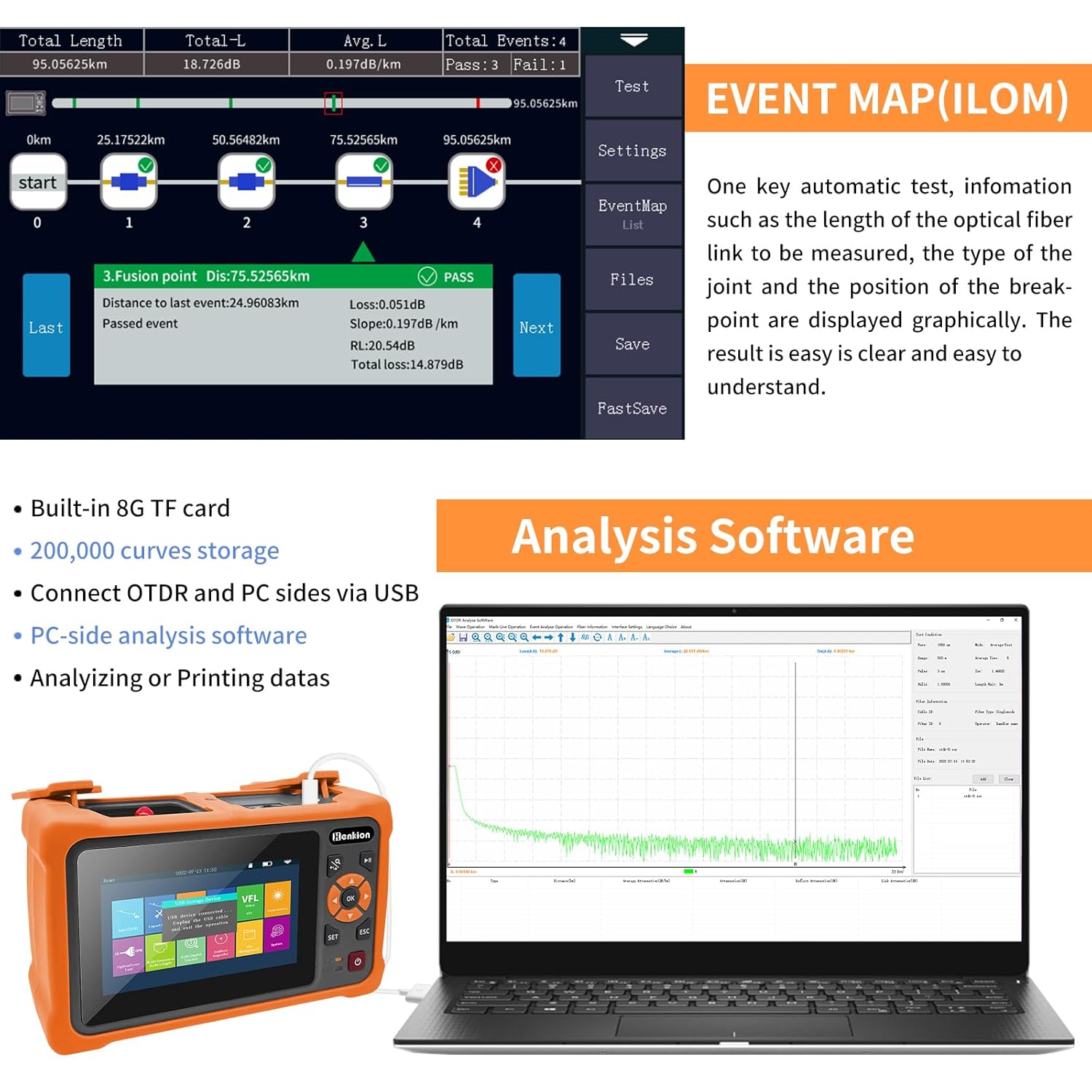

- 【Event map & RJ45 Sequence/Tracker 】Five type of events, event map can one key automatic test,and the information such as the length of the optical fiber link to be measured,the type of the joint and the position of the breakpoint are displayed graphically. RJ45 sequence test can test straight-through network cable and crossover network cable detection. With cable tracer,can quickly find out the network cable from the mess cables.
- 【Analysis Software & Friendly Services】 Connect OTDR Tester and computer by USB cable.Find "OTDR Analyse & Print software" and install it, which can further analyizing or printing datas. Data format is standard SOR format. OTDR fiber tester Dimension/Weight:6.81x4.29x1.77inch/1.1lbs. Before test or test result is not accurate, please using the alcohol cotton to clean the fiber connector.
| Color | Orange |
|---|---|
| Model | RSO-4000D 1310/1550nm 26/24dB |
| Brand Name | Henkion |
| Style Name | RSO-4000D 1310/1550nm 26/24dB |
| Item Weight | 0.5 Kilograms |
| Manufacturer | Henkion |
| Power Source | Power |
| Item Dimensions | 1.77 x 6.81 x 4.29 inches |
